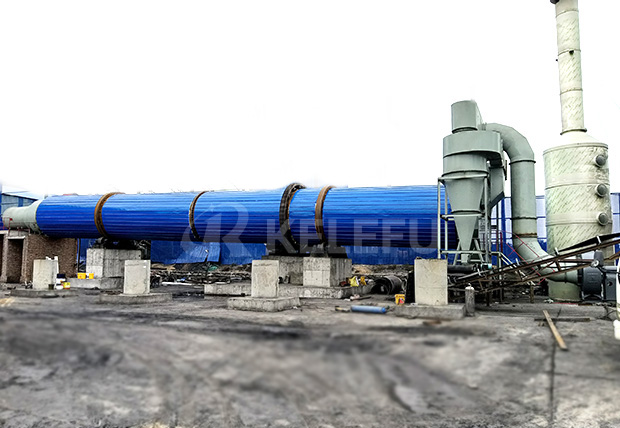

Salina Φ2.2x18 slime drying production site
Salina Φ2.2x18 slime drying production site

Salina Φ2.2x18 slime drying production site

  • Dispose of materials: slime
  • Processing capacity: 20t/h
Online Chat

Customer Introduction

This enterprise is a coal slime recycling enterprise in Shanxi. Due to the large-scale expansion of business, it needs to add a coal slurry drying production line. After understanding our company and field investigation, they were attracted by Kolev's professional technology and excellent process and purchased our complete coal slime drying production line.

Technological Process

This production line is mainly composed of hot blast stove, dryer mainframe, conveyor, feeder, discharge device, induced draft fan, power distribution cabinet, dust collector equipment, control system and other accessories. Detailed technological process is as follows: the materials are turned under the large angle plate and into the material falls type. The internal and external moisture in the coal is rapidly evaporated and stripped into water vapor, and the water vapor is then extracted by the induced draft fan, so as to achieve the purpose of drying. After the heat exchange to complete the drying operation of the material into the discharge process, the tail gas of the production line through the multi-stage dust collector for subsequent processing.

Technological Advantage

1: The new feeding and discharging device eliminates the phenomenon of feeding blockage, discontinuity, uneven feeding and return material of the cylinder dryer, and reduces the load of the dust collector system. 2: The dryer has strong overload resistance, large processing capacity, less fuel consumption and low drying cost. 3:The Dryer realizes 'zero horizontal thrust', which greatly reduces the wear of the retaining wheel, stable and reliable cylinder operation. 4: The new internal structure strengthens the cleaning and heat conduction effect of dispersed materials, eliminates the sticky phenomenon of the inner wall of the cylinder, and has stronger adaptability to the material moisture and viscosity. 5: The dryer adopts the 'aligning supporting wheel device', so that the supporting wheel and the rolling ring with linear contact forever, thus greatly reducing the wear and power loss.
