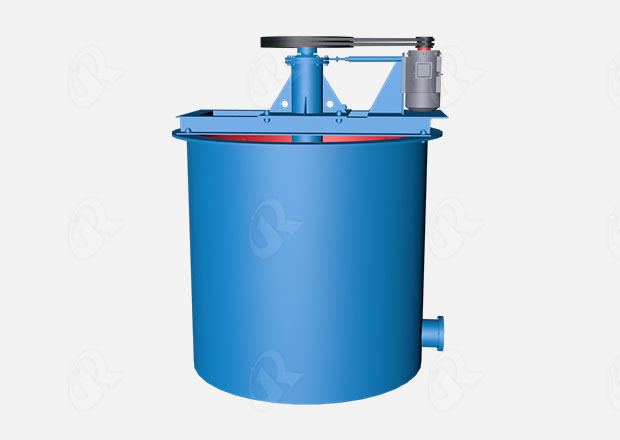

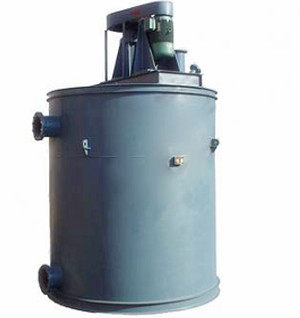

Mixing Drum
The mixing tank is driven by the V-belt drive of the motor to rotate the impeller, which can fully mix the medicine and the pulp evenly, increase the reaction time of the medicine and strengthen the quality of the medicine reaction.
Slot diameter (mm) | Slot height | Effective volume | Impeller diameter (mm) | Impeller speed (r/min) | Matched power | Weight (kg) | ||
| Model | Power(kw) | |||||||
XB-750 | 750 | 750 | 0.26 | 240 | 530 | Y90S-4 | 1.1 | 228 |
XB-1000 | 1000 | 1000 | 0.58 | 240 | 530 | Y90L-4 | 1.5 | 436 |
XB-1200 | 1200 | 1200 | 1.14 | 400 | 320 | Y100L2-4 | 3 | 765 |
XB-1500 | 1500 | 1500 | 2.2 | 400 | 320 | Y100L2-4 | 3 | 1083 |
XB-2000 | 2000 | 2000 | 5.46 | 550 | 230 | Y132M2-6 | 5.5 | 1671 |
XB-2500 | 2500 | 2500 | 11.2 | 650 | 200 | Y160L-6 | 11 | 3438 |
XB-3000 | 3000 | 3000 | 19.1 | 700 | 210 | Y225S-8 | 18.5 | 4613 |
XB-3500 | 3500 | 3500 | 30 | 850 | 230 | Y225M-8 | 22 | 7110 |
The agitating tank is a necessary equipment of increasing pharmacy effect and enhancing drug response quality, as well as agitation of various chemical industries.
V-belt drive of motor drives impeller rotating and mixing the drugs with pulp smoothly. The Agitating Barrel is a necessary equipment of increasing pharmacy effect and enhancing drug response quality, as well as agitation of various chemical industries. The agitating tank is driven by driving band operated by the motor to mix the chemical and slurry very well and enlarge the reaction time and improve the chemical reaction quality. This agitating tank is used for mineral dressing plant and can be used for mixing in many industries.
